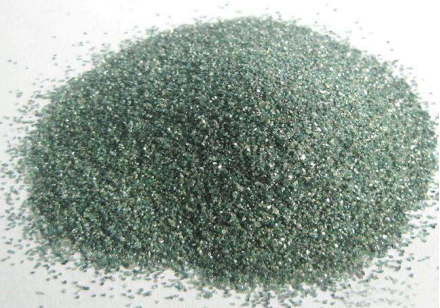

Green Silicon Carbide Powder
They are green crystals with high hardness and strong cutting capacity,stable chemical properties and good heat conduction. Silicon carbide has a micro shape of hexagona crystal with Mohs hardness of 9.2-9.6,and micro-Vickers hardness of 3000--3300kg/mm2.Main purpose:Cutting and grinding of solar silicon chips,semiconductor silicon chips and quartz chips; polishing of crystal and ferrite;precision polishing of ceramics and special steel; cutting,fee grinding and polishing of bonded abrasive products and coated abrasive tools; grinding of glass,stones,agate,superb jewels,jade-ware and other non-metal materials; manufacturing of top-grade refractory materials,engineering ceramics,heating elements and thermal elements.
| 粒度分布(ミクロン)Granularity Distribution(μm) | 化学成分Chemical Index | 物理成分Physical Index |
粒度サイズ Granularity | D0< Below | D3< Below | D50值 value | D94>Above | SiC ≥(%) | FC ≤(%) | Fe2O3 ≥(%) | Ph值 value | 嵩比重 Bulk density | 磁性物(%) Content of magnetic substances |
GC#240 | 120 | 100.0 | 57.0±3.0 | 40.0 | 99.00 | 0.13 | 0.13 | 6-7.5 | 1.25 | 0.01 |
GC#280 | 110 | 80.0 | 48.0±3.0 | 33.0 | 99.00 | 0.13 | 0.13 | 6-7.5 | 1.23 | 0.01 |
GC#320 | 93 | 70.0 | 40.0±2.5 | 27.0 | 99.00 | 0.12 | 0.12 | 6-7.5 | 1.23 | 0.01 |
GC#360 | 80 | 60.0 | 35.0±2.0 | 23.0 | 99.00 | 0.12 | 0.12 | 6-7.5 | 1.20 | 0.009 |
GC#400 | 70 | 53.0 | 30.0±2.0 | 20.0 | 99.00 | 0.13 | 0.13 | 6-7.5 | 1.20 | 0.009 |
GC#600 | 50 | 38.0 | 20.0±1.5 | 13.0 | 99.00 | 0.13 | 0.13 | 6-7.5 | 1.18 | 0.009 |
GC#800 | 30 | 20.0 | 14.0±1.0 | 9.0 | 99.00 | 0.12 | 0.12 | 6-7.5 | 1.18 | 0.008 |
GC#1000 | 25 | 17.5 | 11.5±1.0 | 7.0 | 99.00 | 0.12 | 0.12 | 6-7.5 | 1.15 | 0.008 |
GC#1200 | 20 | 16.5 | 9.5±0.8 | 6.0 | 99.00 | 0.15 | 0.13 | 6-7.5 | 1.13 | 0.005 |
GC#1500 | 18 | 15.0 | 8.0±0.6 | 4.8 | 99.00 | 0.15 | 0.13 | 6-7.5 | 1.12 | 0.005 |
GC#2000 | 16 | 13.0 | 6.7±0.6 | 4.0 | 99.00 | 0.14 | 0.15 | 6-7.5 | 1.00 | 0.005 |
GC#2500 | 15 | 13.0 | 5.5±0.5 | 3.0 | 98.00 | 0.30 | 0.30 | 6-7.5 | 1.00 | 0.007 |
GC#3000 | 13 | 11.0 | 4.0±0.5 | 2.0 | 97.00 | 0.35 | 0.30 | 6-7.5 | 0.92 | 0.007 |
GC#4000 | 11 | 8.0 | 3.0±0.4 | 1.3 | 97.00 | 0.35 | 0.30 | 6-7.5 | 0.92 | 0.007 |
GC#6000 | 8 | 5.0 | 2.0±0.4 | 0.8 | 97.00 | 0.25 | 0.30 | 6-7.5 | 0.90 | 0.007 |
